The plugin for iikoFront can work in three modes:
- Main - normal mode, when the front is unlocked when the fingerprint is read
- Time Control is a mode in which the front is not unblocked, but information about the opening or closing of the turnout is sent to the server. Need a REST API license on the server where we send the turnout
- MultiControl - combines the Main and TimeControl modes on one front. Depending on the position, the front will be unblocked or information about the turnout will be sent to the server. Need a REST API license on the server where we send the turnout
Mode You don't need to configure Main. It is set by default. You only need to install the plugin.
TimeControl is needed so that without opening a shift on iikofront, it is possible to fix the turnout. The turnout can be sent directly to the iikochain server, and not saved in the RMS.
The default value of Time Control is false, if it is necessary to send turnouts directly to the chain (or to the RMS), then set the value to true. The iikoFront finger unlock function will not be available. This solution is intended only for accounting of working hours of employees.

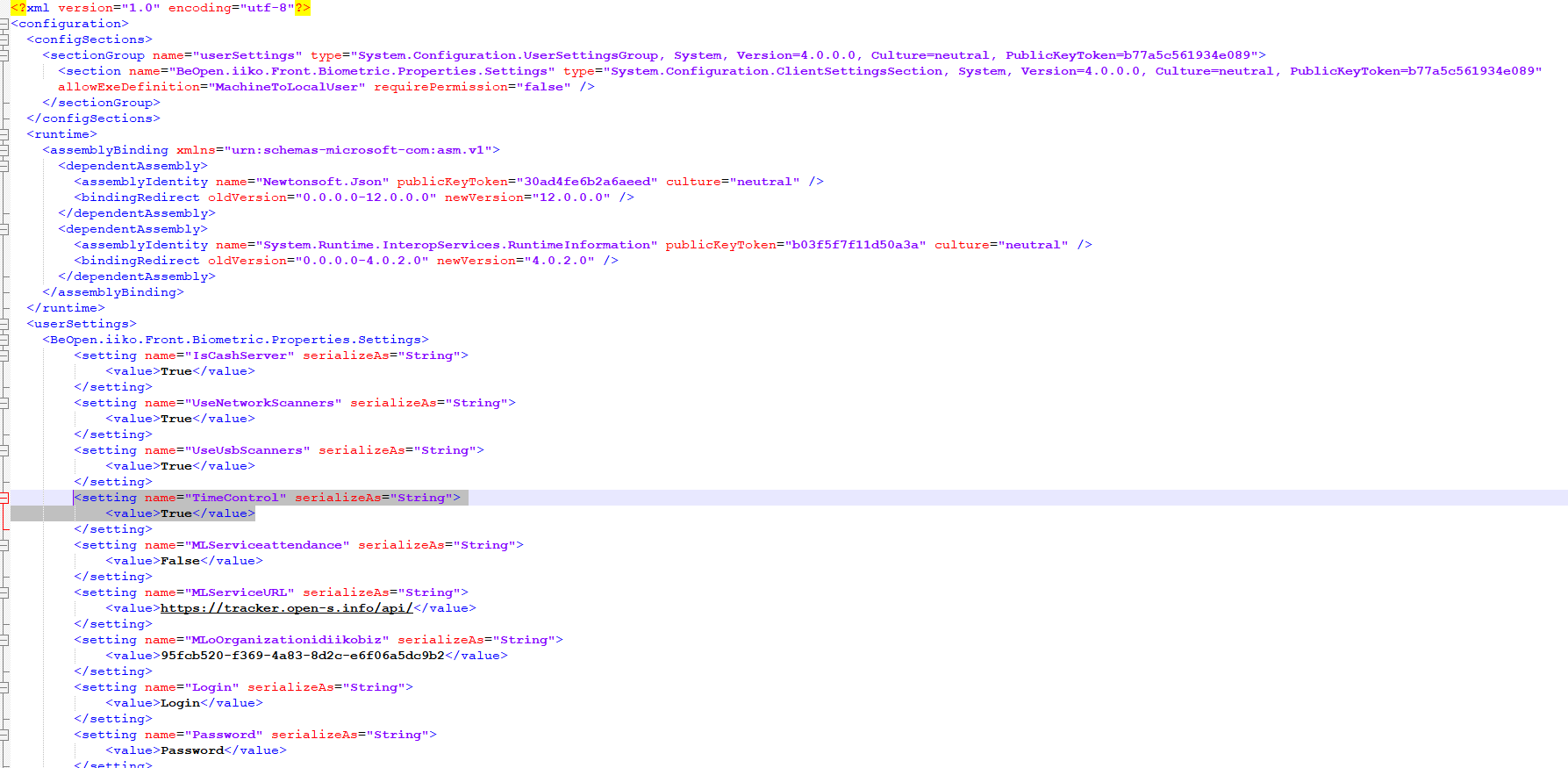

To use this functionality in the BeOpen.iiko config.Front.Biometric.dll.config must set the TimeControl value to true and set it in the TP employee card by default.

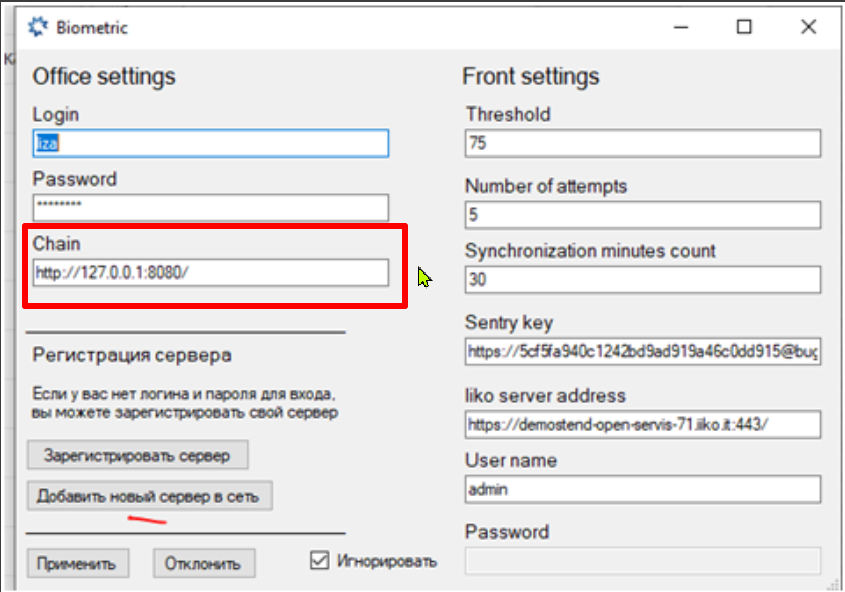

In the BeOpen.iiko.Back plugin.Biometric in the chain field, we write the address of the iiko server, where the appearances will be recorded
If you are sure that you need this functionality, then we make this configuration and launch iikoFront.

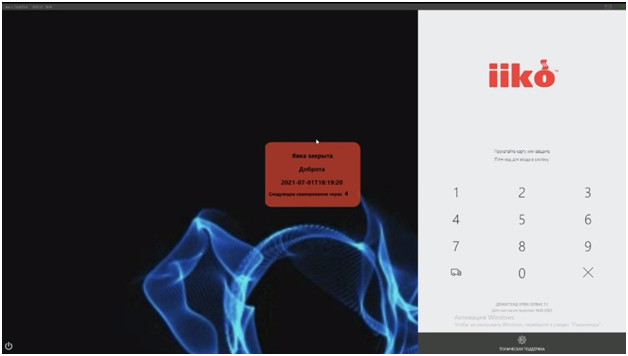

We put the employee's finger to open the turnout.
When the employee finishes the shift, it is necessary to apply the finger again and the turnout will be closed.
Since version 2.1.6, MultiControl mode has been added.
It allows you to use the main and TimeControl modes on the same front, dividing them by employee positions.

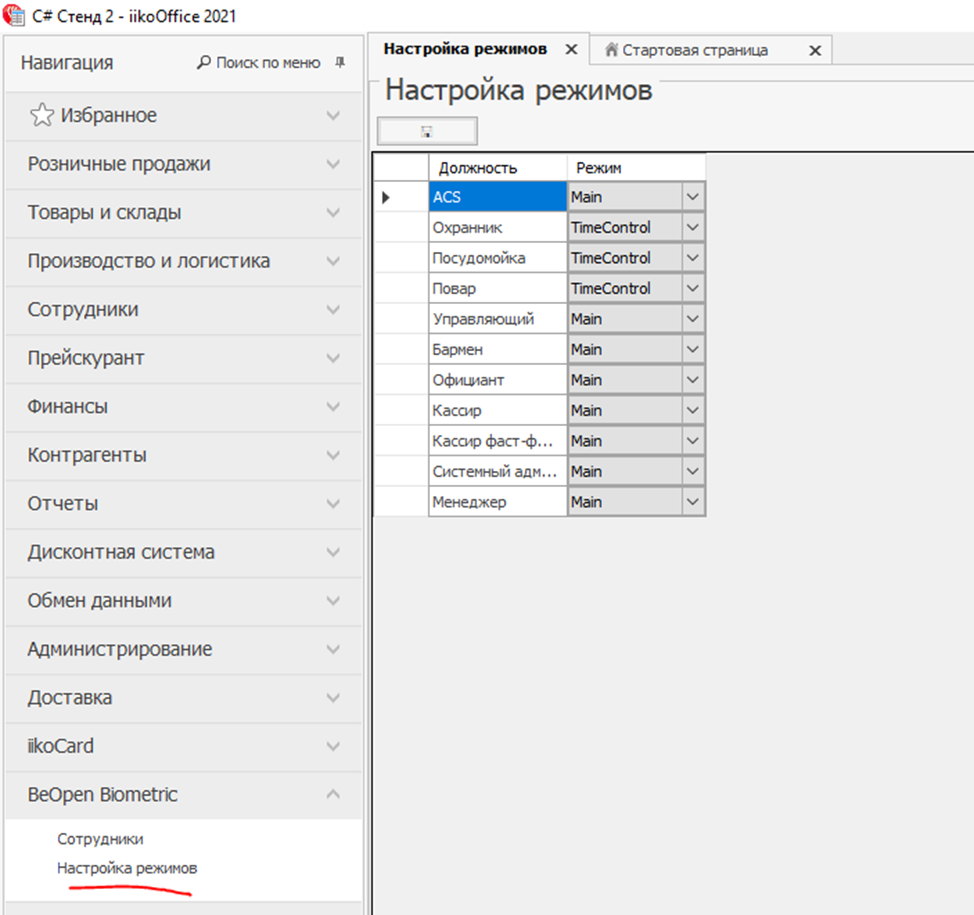

To configure the Multi Control mode, it is necessary to configure posts in the biometrics tab.
Where Main is the unblocking of the front, and TimeControl is the forwarding of the turnout to the server.
In order for the plugin to work correctly, the employee must have one position. A cleaner cannot also be a system administrator.

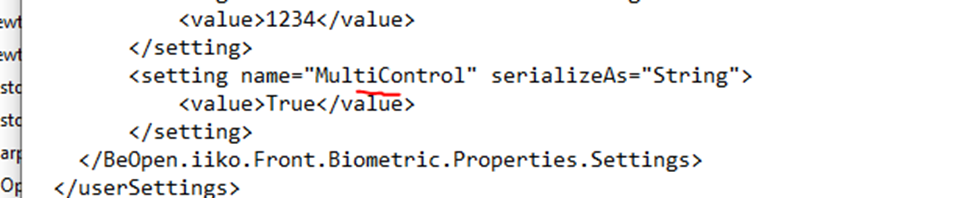

Next, in the config of the front plugin, you need to set the parameter
